this is how I built catch can into frame on my YZ - similar should work on KX or most frame designs -

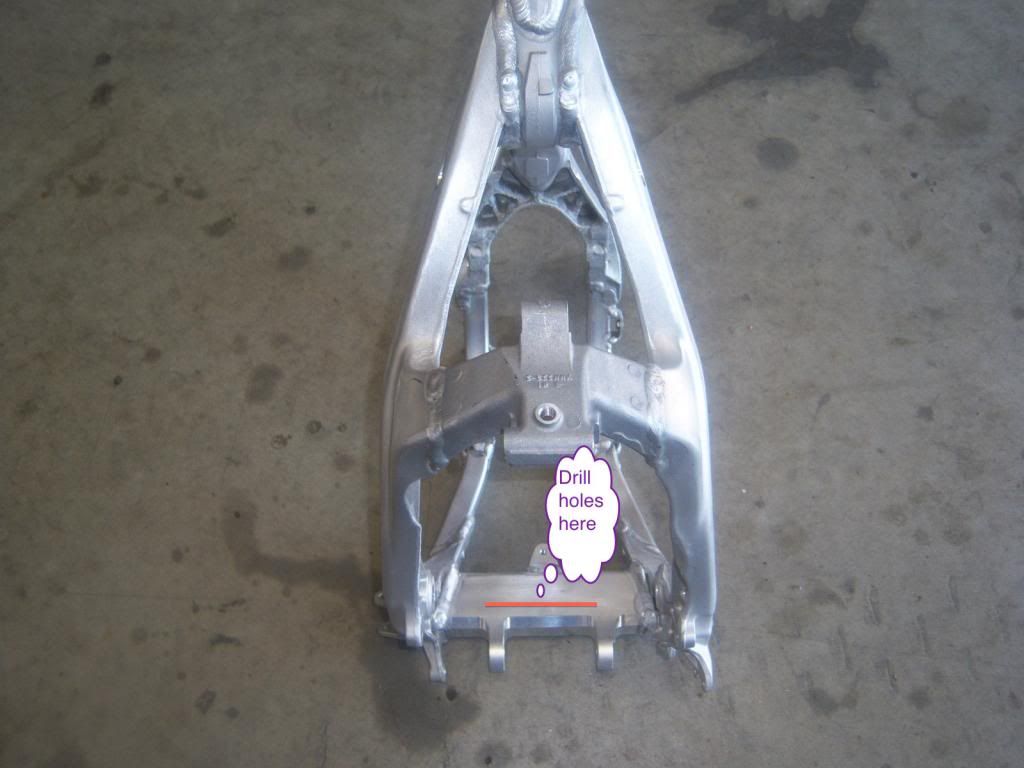

drilled 3 small holes into top of lower frame cross member-

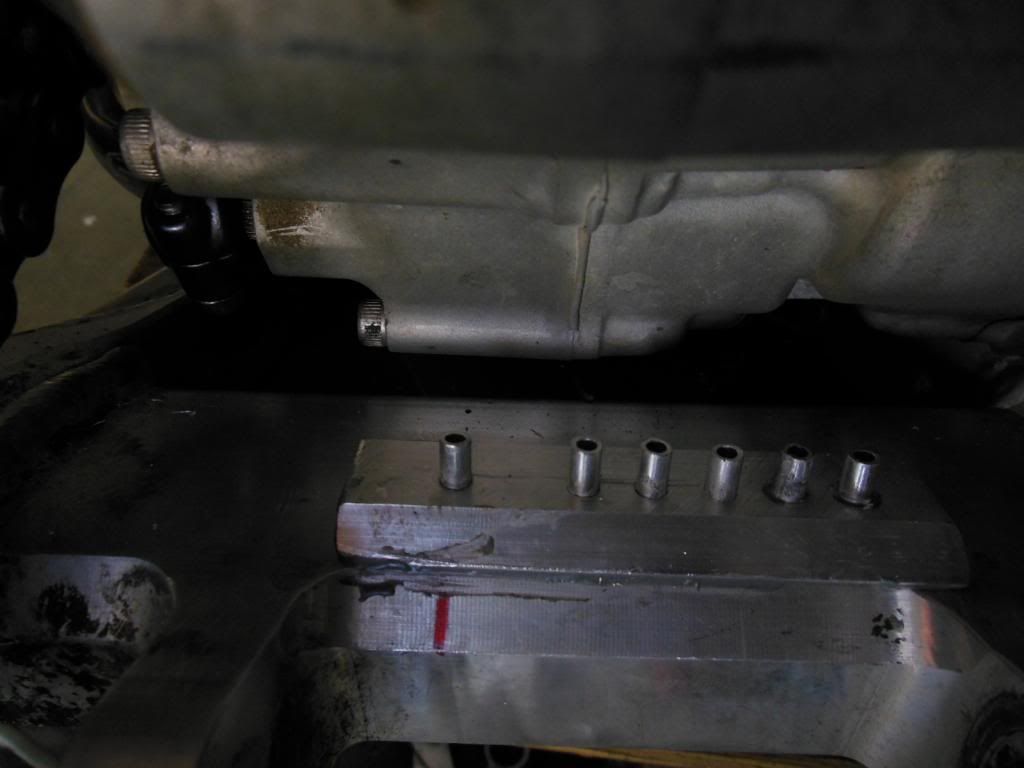

milled a aluminum plate with a channel in it to allow fuel to flow freely - drilled holes in channel and used rivets as hose nipples -
JB welded nipples in place-let dry-

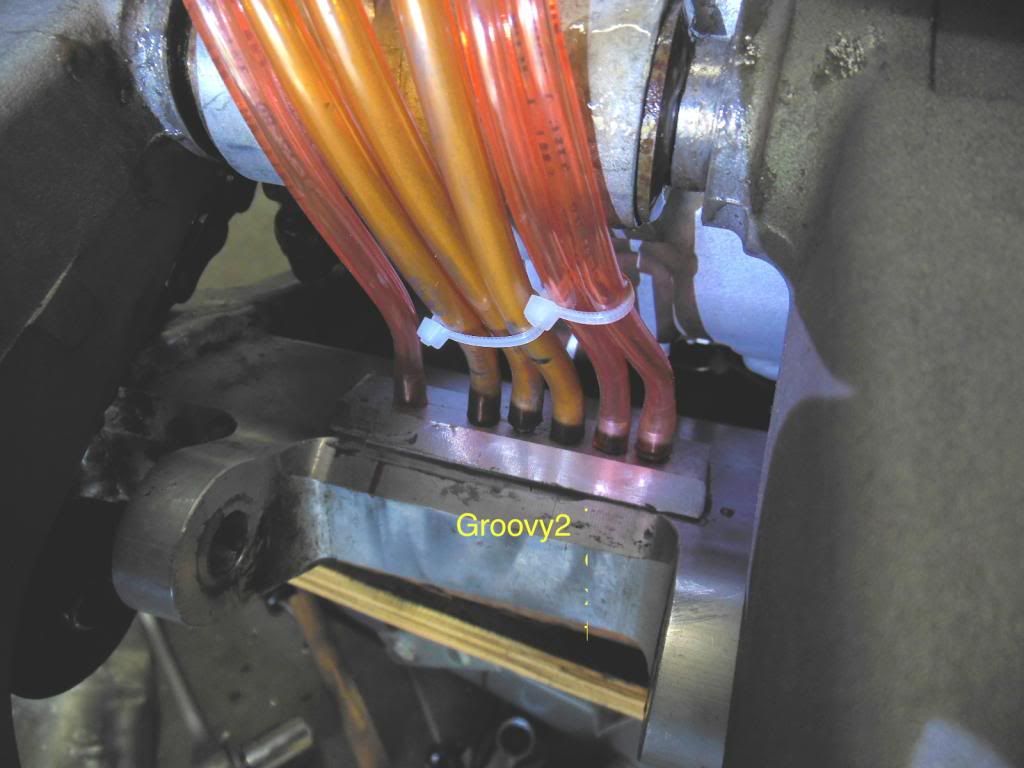

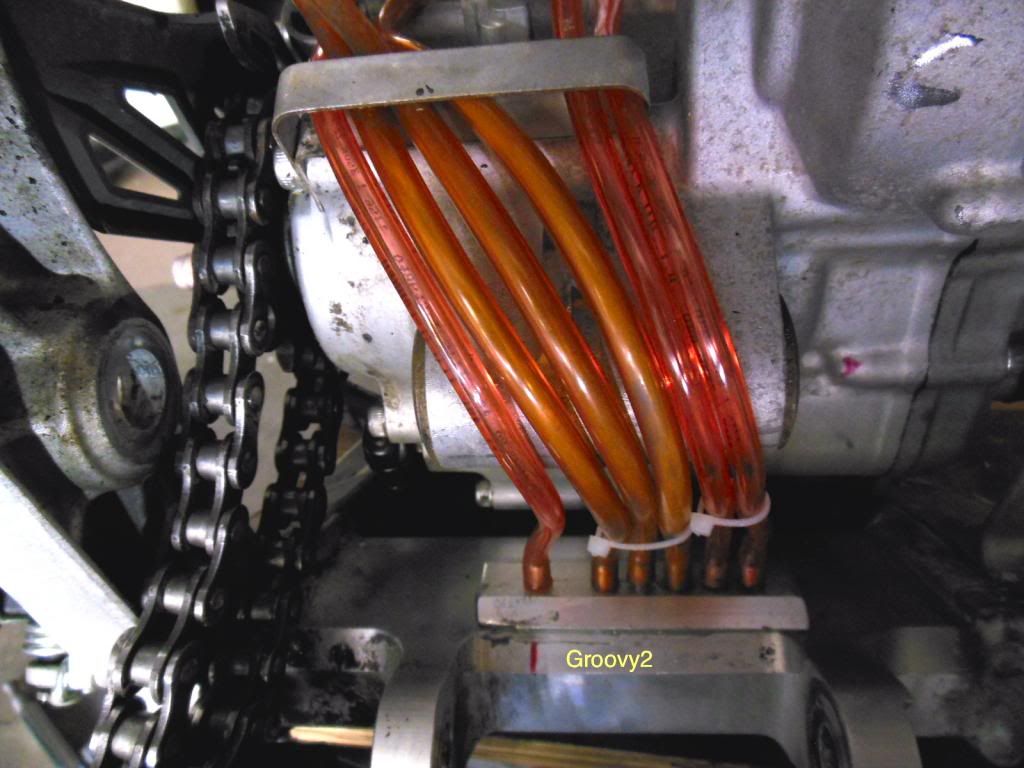

one nipple has a small tube that fits inside the frame to lowest point to drain fuel -siphon action -

Bottom of plate is coated with JB weld and clamped on place till dry - works well -

-

-
-

-
-

-
-

-
-
-


·
Registered
Joined
·
3,067 Posts
what are the notches in the crank for ??


·
Registered
Joined
·
3,067 Posts
used to stuff crank holes and crank pin with cork and epoxy
to Up crank case compression -

it did work
